Pneumatic Rubber Fender
Pneumatic Rubber FenderPneumatic Rubber FenderPneumatic Rubber Fender
Pneumatic Rubber FenderPneumatic Rubber FenderPneumatic Rubber Fender

Pneumatic Rubber Fender

Share:

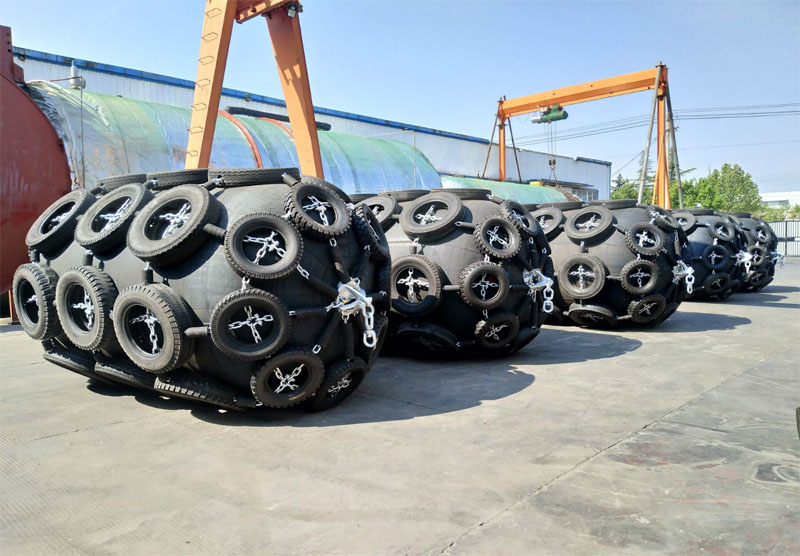

Pneumatic rubber fender is a very popular marine fenders used for ship to ship and ship to dock berthing operation. It is an elliptical body which consist of inter rubber layer, synthetic tyre-cord layer for reinforcement and outer rubber layer.



Product Details

Pneumatic rubber fender description:

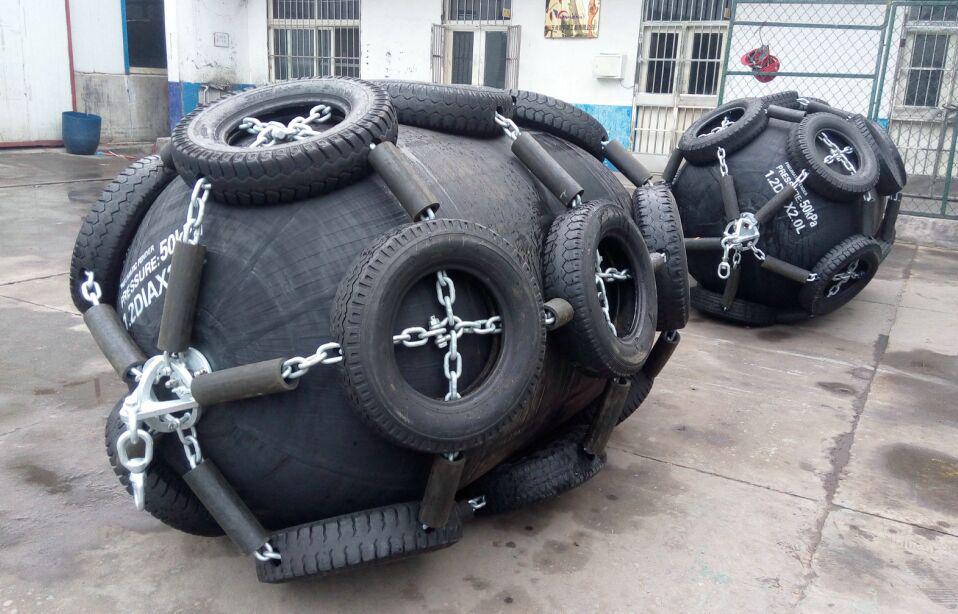

Pneumatic rubber fender is a very popular marine fenders used for ship to ship and ship to dock berthing operation. It is an elliptical body which consist of inter rubber layer, synthetic tyre-cord layer for reinforcement and outer rubber layer.High pressure pneumatic fender types are defined as Net type and sling type.Net-type fender is covered by a protection net consisting of either chain, rubber sleeve and used tires.Sling-type fender is designed to be used without a protection net.


Pneumatic rubber fender advantages:

The best feature of pneumatic rubber fender is easy to install, easy to re-deploy. The fender is supported by the water on which it floats. It can be moored simply by means of a guy rope or chain and can be removed easily to a suitable jetty or quay when not in use, or transferred to another mooring point whenever required.


Pneumatic rubber fender dimension&specification table:

Nominal sizeInternal pressure 0.05Mpa at 60% deflectionSafety-valve pressure settingTesting pressure
DiameterLengthEnergy absorptionReaction forceHull pressure
mmmmKN-mKNKPaKPaKPa
5001000664132200
6001000874126200
700150017137135200
1000150032182122200
1000200045257132200
1200200063297126200
13502500102427130200
15003000153579132200
17003000191639128200
20003500308875128200
250040006631381137175250
250055009432019148175250
3000600013092387148175250
3300450011751884130175250
3300650018143015146175250
33001060030675257158175250
4500900047525747146175250
45001200064737984154175250


Nominal sizeInternal pressure 0.08Mpa at 60% deflectionSafety-valve pressure settingTesting pressure
DiameterLengthEnergy absorptionReaction forceHull pressure
mmmmKN-mKNKPaKPaKPa
5001000885174250
60010001198166250
700150024180177250
1000150045239160250
1000200063338174250
1200200088390166250
13502500142561170250
15003000214761174250
17003000287840168250
200035004301150168250
250040009251815180230300
2500550013172653195230300
3000600018902906196230300
3300450016402476171230300
3300650025323961191230300
33001060042816907208230300
4500900066337551192230300
450012000903710490202230300
