T20 T head Marine Bollard SWL20Tons Successfully Delivery

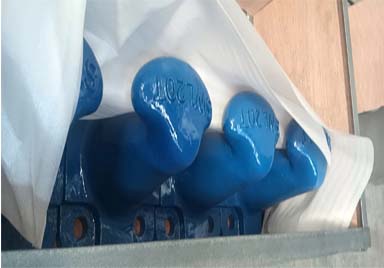

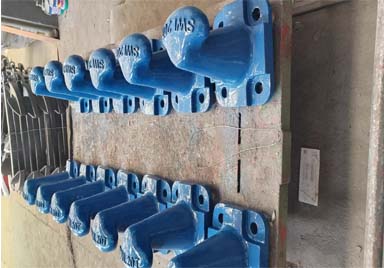

WHALE MARINE Successfully Delivers a Batch of Custom-Made Blue Mooring Bollards to a UK Client.

1. Superior Load-Bearing Capacity

The T-HEAD T20 Horn Bollard features a rated Safe Working Load (SWL) of 20 tons and a safety factor of 3. Its housing is cast from QT500-7 ductile iron, offering a perfect balance of strength and toughness to withstand the instantaneous impact of berthing vessels as well as the fatigue caused by wind and wave forces. Weighing 38 kg per unit, the bollard features a scientifically balanced base design; once installed via pre-embedded anchors, it demonstrates exceptional resistance to overturning and pull-out forces, ensuring it remains free from cracking or deformation even under heavy mooring loads.

2. Premium Anti-Corrosion Configuration

The cast substrate undergoes Sa2.5-grade sandblasting to thoroughly remove rust scale and burrs, thereby enhancing paint film adhesion. The complete coating system meets the C5 "Very High" marine anti-corrosion standard, providing robust protection against high-salinity salt spray, humid and hot marine atmospheres, and corrosive coastal industrial fumes. The distinctive blue anti-corrosion topcoat offers highly visible protection; even after prolonged outdoor exposure in coastal environments, the bollard exhibits minimal corrosion, significantly reducing long-term maintenance costs for the terminal.

3. Structural and Installation Advantages

Featuring a classic T-HEAD horn shape, the bollard ensures that mooring lines remain securely in place without slipping or tangling. The base features a standardized four-hole flange pattern compatible with globally recognized pre-embedded bolt specifications, facilitating quick and convenient installation at overseas project sites. Manufactured through standardized, mass-production molding processes, the bollards feature uniform dimensions; this allows for efficient, full-container bulk shipments, ensuring stable delivery schedules and offering significant unit-price advantages for large-scale procurement orders.

4. Bulk Supply Capabilities

Leveraging streamlined, large-scale casting production lines, we maintain a ready stock of inventory to fulfill bulk procurement orders for overseas engineering projects. Our delivery timelines are fully controllable, making our supply chain an ideal fit for the centralized procurement needs of international port infrastructure development projects.

As a one-stop marine bollard supplier, whale fender supply all types of marine bollard，Don`t hesitate to let us know if you have any needs for marine bollard!
