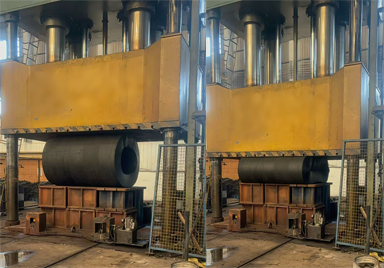

We conducted a compression test for the cylindrical rubber fender OD1500xid900x2000mmL today. The result was satisfied and met the values of working performance as we promised to our clients.
The performance of the Fender is expressed by the value of the energy absorbed during the compression of Fender up to the designed deflection and the maximum value of reaction load thus obtained.
During the performance test, the fender will be subjected to a vertical force acting directly on the top surface of the fender :Compression stroke speed at 2-8cm per minute up to the designed deflection is to be repeatedly conducted for three consecutive testing. After one hour break the fourth time testing will be conducted. The load and the deflection in each test shall be recorded with the precision of 1.0 KN (0.1Ton) and 1mm respectively unless otherwise specified.
The value of energy absorption is expressed in KN-m (Ton-m) and is obtained by the reaction load/deflection curve up to the designed deflection.
Performance of the fender is obtained from the fourth time testing.
Want to know more about the application of cylindrical rubber fender, don`t hesitate to contact us info@whalefender.com
